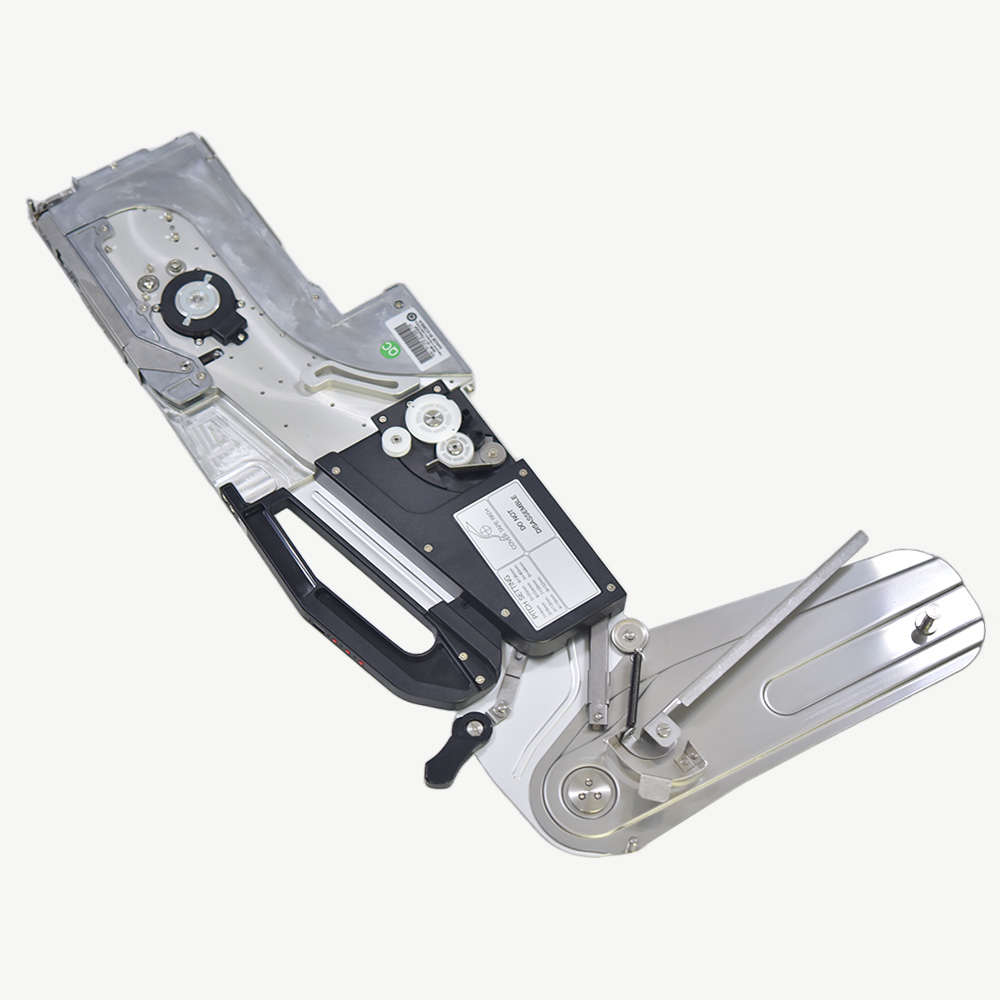

SME-12mm SAMSUNG SME 12mm Feeder

SME-12mm SAMSUNG SME 12mm Feeder Specification

Noise Level
Low

Size
12 mm Tape Width

Capacity
Supports Continuous Feeding of 12 mm Tape

Surface Finish
Smooth / Polished

Features
High precision, easy installation, reliable performance, anti-jam design

Shape
Rectangular

Usage & Applications
Used for feeding components in Samsung pick-and-place SMT assembly lines

Drive Type
Pneumatic-driven

Lubricating System
Self-Lubricated Mechanical Parts

Product Type
Feeder for SMT Machines

Material
Stainless Steel, High-Grade Alloy

Technology
Surface Mount Technology (SMT)

Power Source
Pneumatic

Power
Not Applicable (Pneumatic Operation)

Pressure
0.4-0.6 MPa (Compressed Air)

Surface Treatment
Polished / Anti-corrosive Coating

Dimension (L*W*H)
Approx. 320 x 70 x 120 mm

Weight
About 1.6 kg

Color
Silver / Black

Part Number
SME 12mm

Storage Temperature
-10C to 50C

Compatibility
Compatible with Samsung SME Series SMT Machines

Handling
Ergonomic, Lightweight for Easy Handling

Maintenance
Minimal, Supports Tool-less Maintenance

Spare Parts Availability
Readily Available from OEM or Authorized Dealers

Component Types Supported
Resistors, Capacitors, ICs in 12mm Tape Packaging

Mounting Method
Quick-Lock Mechanical

Replacement Cycle
Designed for Long Life Cycle

Tape Feed Type
Electric / Pneumatic Tape Advancement

Operating Temperature Range
5C to 40C

SME-12mm SAMSUNG SME 12mm Feeder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About SME-12mm SAMSUNG SME 12mm Feeder

Prices are for show only, please contact us for exact price

SMT Product List

J31021017A	SM-V DRAIN MOTOR
J7066044A	TAPE GUIDE SPRING
J7066043A	LOCKER SPRING
FC38-000155A	D TENSIONER SPRING W4P1
G003-000046A	D-FOLLOWER SPRING
J7066041A	LEVER2 SPRING
EP10-901401	MAGNET
FC18-901894	BUTTON HEAD CAP SCREW
AM03-012579A	TAPE GUIDE MW4P1 ASSY
J90652097A	LOCKER M 08 ASSY
J90652099A	D-TENSIONER M 08 ASSY
AM03-012580A	D-HANDLE M W4P1 ASSY
AM03-001815C	ASSY,BOARD-MF MAIN BOARD
AM03-001915C	ASSY,BOARD-MF MAIN BOARD
AM03-900123	DRAIN SENSOR HARNESS ASSY M 08

Optimized Efficiency for SMT Lines

Engineered specifically for Samsung SME Series machines, the SME-12mm Feeder streamlines component feeding for resistors, capacitors, and ICs. Its high-precision design ensures continuous operation, reducing downtime and improving overall production efficiency in surface mount technology (SMT) assembly.

Rugged & Reliable Construction

Constructed from stainless steel and high-grade alloy, the feeder features a polished, anti-corrosive coating for durability in demanding environments. The rectangular, compact structure and lightweight profile ensure ergonomic handling during installation and maintenance.

Hassle-Free Maintenance & Long-Term Use

Minimal, tool-less maintenance is supported by the self-lubricating mechanical system and easily available spare parts from OEM and authorized dealers. Quick-lock mechanical mounting and anti-jam features make the feeder ideal for high-volume, continuous SMT production lines.

FAQ's of SME-12mm SAMSUNG SME 12mm Feeder:

Q: How does the SME-12mm SAMSUNG SME Feeder operate within an SMT assembly line?

A: The SME-12mm Feeder works by pneumatically advancing tape containing resistors, capacitors, or ICs to the pickup point of a Samsung SME Series SMT machine, enabling precise and continuous component placement during automated PCB assembly.

Q: What are the installation requirements for this feeder?

A: The feeder is designed for quick-lock mechanical mounting, allowing fast, tool-less attachment or removal from Samsung SME Series machines. Its ergonomic and lightweight structure ensures easy handling throughout installation and replacement.

Q: Where can I find replacement parts for this feeder unit?

A: Spare parts are readily available from the original equipment manufacturer (OEM) or authorized dealers, ensuring seamless replacement and minimal production disruption.

Q: What steps are involved in maintaining the SME-12mm Feeder?

A: Maintenance is minimal due to the feeder's self-lubricating components. Occasional cleaning and basic inspections suffice, and all maintenance procedures can be performed without special tools, making it suitable for high-throughput environments.

Q: What are the key advantages of using the SME-12mm feeder in SMT production?

A: The feeder offers reliable performance with anti-jam technology, supports continuous feeding of 12mm tape components, requires little maintenance, and is constructed for long life, resulting in reduced downtime and improved operational efficiency.

Q: When should the feeder be replaced or serviced?

A: The feeder's design supports a long lifecycle, but it should be serviced if tape advancement becomes inconsistent or physical wear is observed. Thanks to its robust build, frequent replacements are typically unnecessary.
