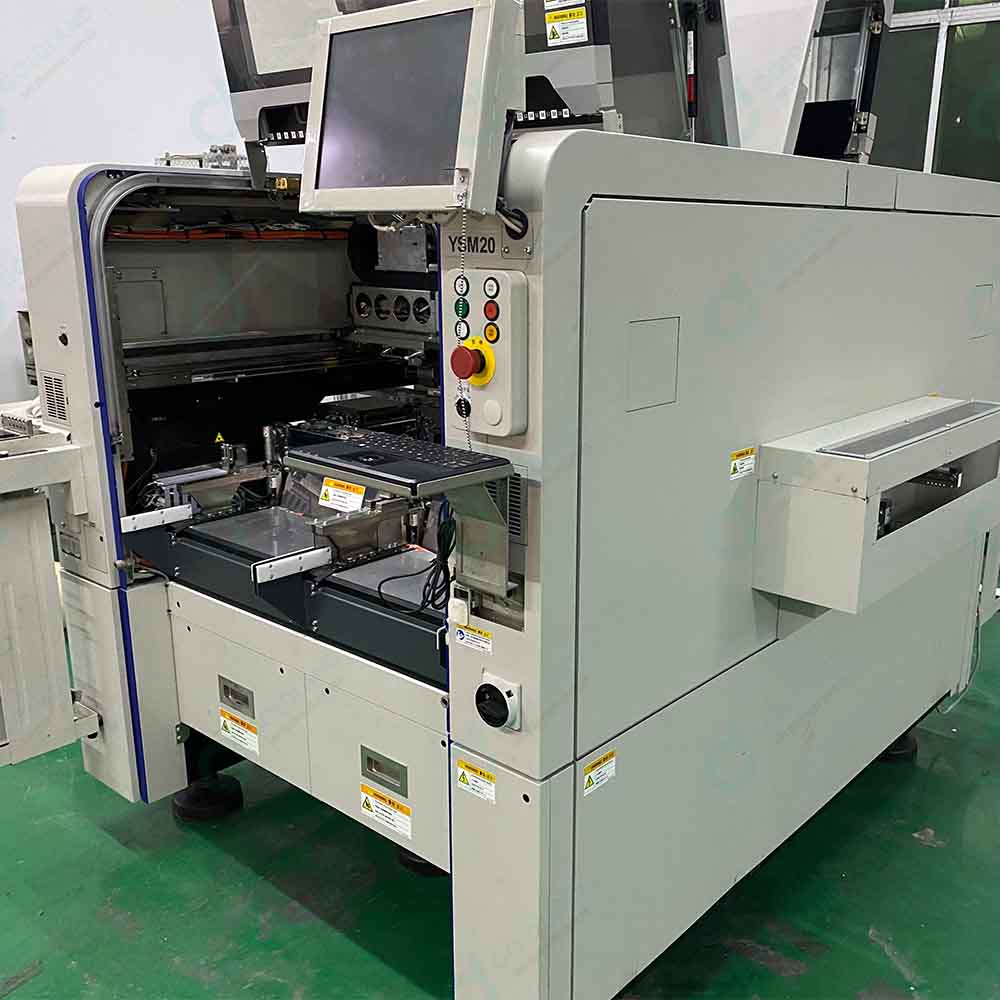

YAMAHA YSM20-2 SMT Placement Machine

YAMAHA YSM20-2 SMT Placement Machine Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About YAMAHA YSM20-2 SMT Placement Machine

Prices are for show only, please contact us for exact price.

Product Description

The YAMAHA YSM20-2 SMT machine offers exceptional performance in high-speed, high-precision PCB assembly. Engineered for flexibility, this advanced placement machine is ideal for high-volume production lines, with capabilities that include automatic component placement, superior accuracy, and fast cycle times. The YSM20-2 supports a wide range of components, from small chip components to large leaded parts, and is designed to maximize throughput while maintaining consistent quality. Its user-friendly interface and intelligent feeder systems enhance operational efficiency, making it a top choice for manufacturers in industries such as electronics, automotive, and telecommunications. Upgrade your SMT process with the YSM20-2 for optimized production efficiency and reduced costs.

Product Specifications

Model	YSM20	YSM20W
Applicable PCB	Dual stage (only for X axis 2-beam specs.): 1 PCB conveyance : L810 x W490 to L50 x W50; 2 PCB conveyance : L380 x W490 to L50 x W50 Single lane: L810 x W490 to L50 x W50 Dual lane (only for X axis 2-beam specs.): L810 x W230 to L50 x W50	Single lane :L810 x W742 to L50 x W50. Dual lane (only for X axis 2-beam specs.): L810 x W356 to L50 x W50
Head / Applicable components	High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less; Note : Multi-camera (option) may be needed in some cases due to part height and part size; Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm. Height 28mm or less.
Mounting capability	X axis 2-beam : High-speed multi-purpose (HM: High-speed Multi) head x 2: 90.000CPH (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam : High-speed multi-purpose(HM: High-speed Multi) head x 2: 80,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy (Under optimum conditions as defined bv Yamaha Motor when standard evaluation materials are used)	+/- 0.035mm (+/-0.025mm) Cpk1.0
Number of component Types	Fixed plate : Max. 140 tvpes (conversion for 8mm tape feeder); Feeder carriage exchange : Max.128 toes (conversion for 8mm tape feeder); Trays for 30 types (fixed) and 10 types (carriage)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/- 10% 50/60Hz
Air supolv source	0 45MPa or more. in clean, dry state
External dimension (excludina proiections)	L 1374 x W 1857 x H1445mm
Weight	Approx. 2.050 kg	Approx. 2.500 ka
