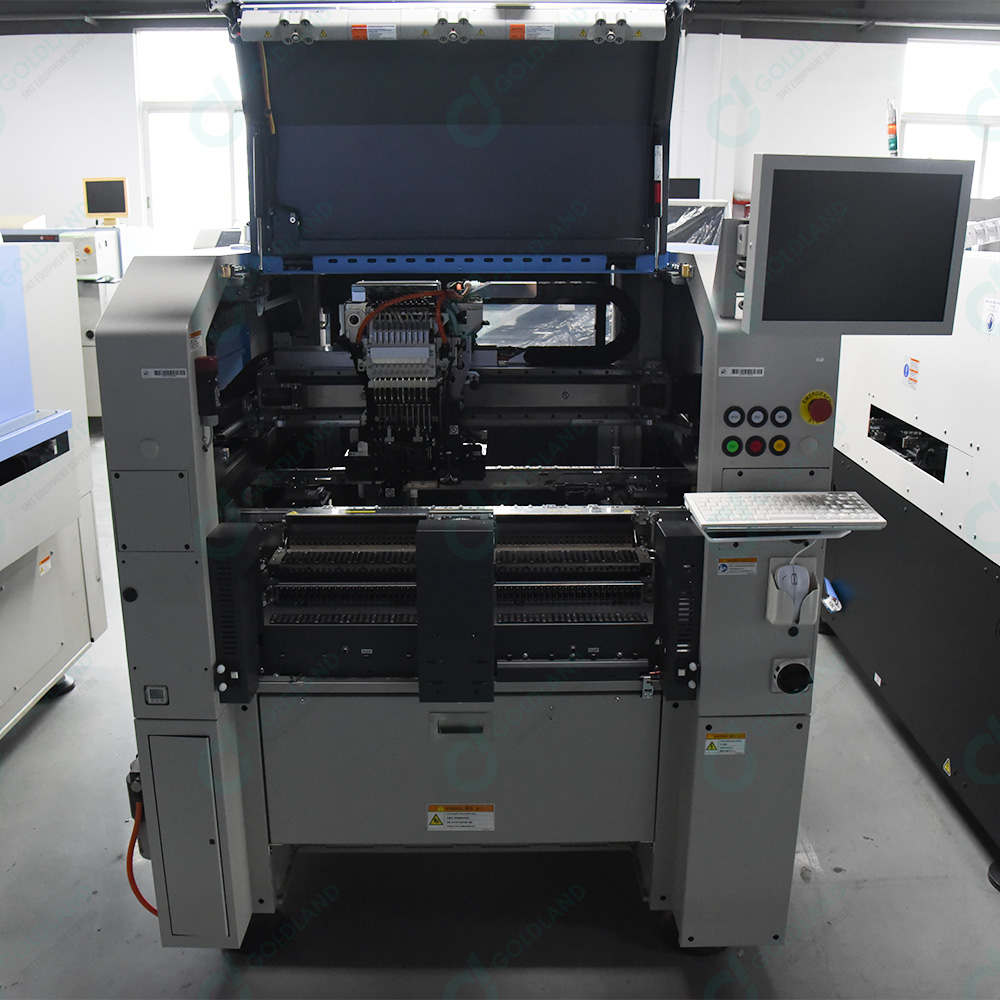

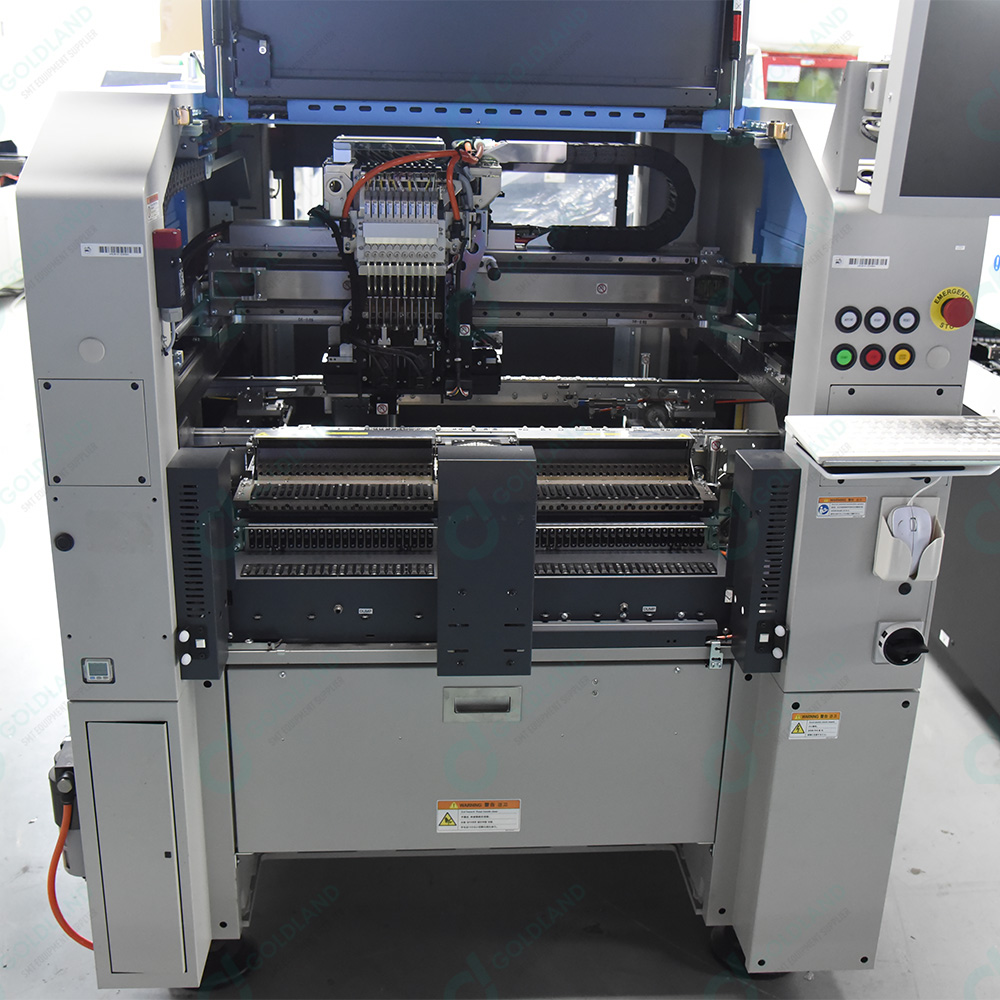

YAMAHA YS12 Surface Mount Pick and Place Machine Precision High Speed Component Placement for SMT Production

Prices are for show only, please contact us for exact price.

Product Description

The YAMAHA YS12 Surface Mount Pick and Place Machine is designed for high-precision, high-speed component placement in Surface Mount Technology (SMT) applications. Offering flexible component handling, the YS12 efficiently places components from fine-pitch chips to larger devices with exceptional accuracy. Ideal for both high-mix and high-volume production environments, the YS12 integrates seamlessly into diverse manufacturing lines. Its advanced vision system and automated feeder options minimize errors and reduce setup time, increasing production throughput. The YAMAHA YS12 is an excellent choice for industries such as electronics, automotive, and telecommunications, providing reliable, consistent performance. With an intuitive interface and real-time monitoring, this machine ensures minimal downtime and maximizes operational efficiency. Enhance your PCB assembly process with the YAMAHA YS12, delivering superior placement precision and optimized production efficiency

Product Specifications

Machine Model	YS12 (Model : KHY-000)
Vintage

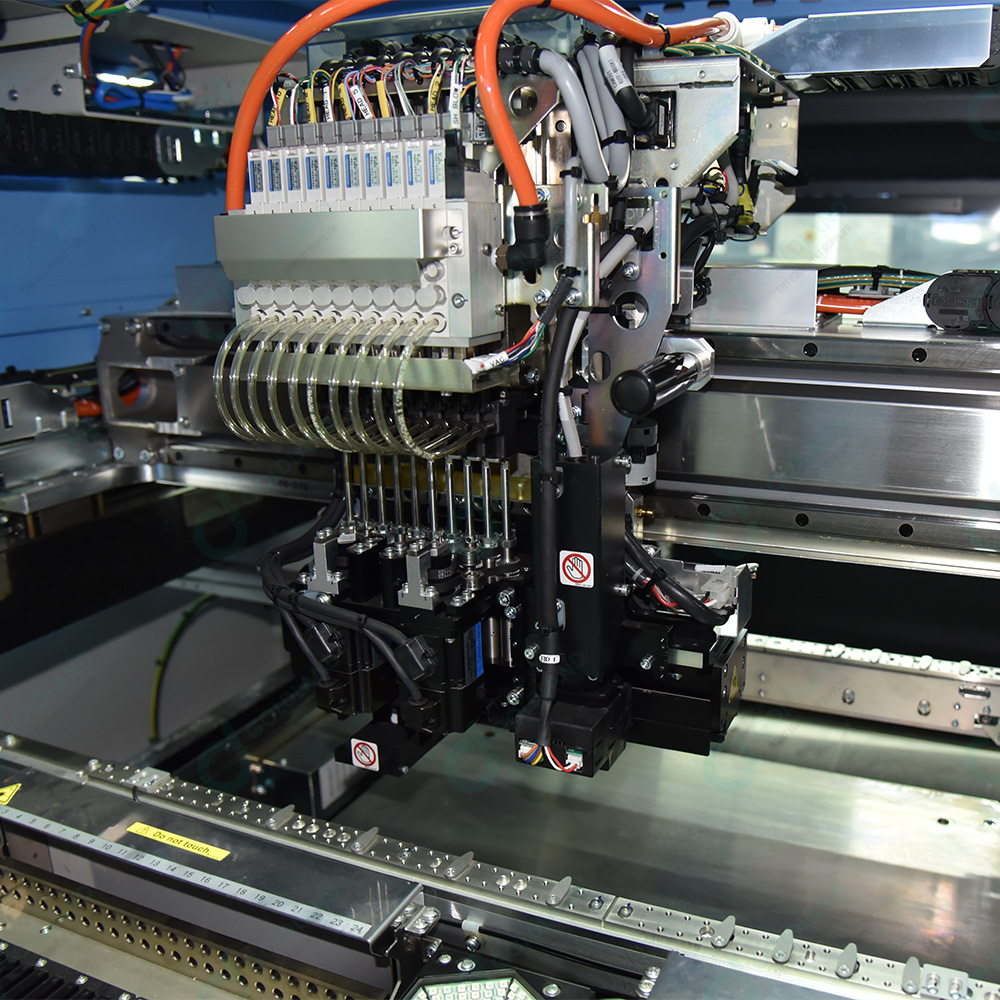

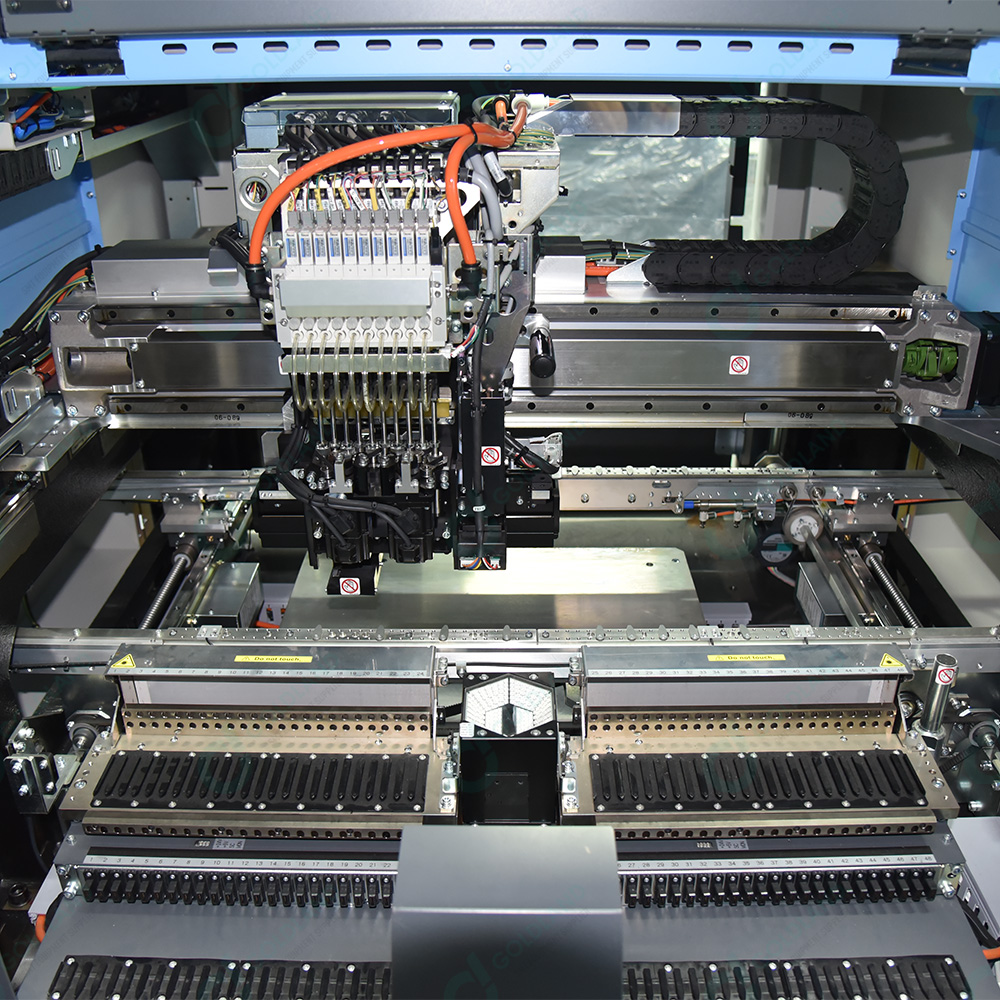

Machinie Head	1 beam x 10 nozzles
Applicable PCB	L510x~W460mm to L50x~W50mm
Through-put (Optimum)	36,000CPH0.1sec/CHIP Equivalent
Mounting accuracy (Yamaha's standard components)	Absolute accuracy (+3) : +/-0.05mm/CHIP Repeatability(3) : +/-0.03mm/CHIP
Applicable components	0402(Metric base) to 32*mm components*1 *Correspondence since Jan., 2010
Feeder base	Front feeder base only
Number of component types	60 types(Max, 8mm tape reel conversion)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry states
External dimension*2	L1,254~W1,440~H1,455mm(cover top)
	L1,464(End of extension conveyor)xW2,018(End of guide for feeder carriage)xH1,455mm(cover top)
Weight	Approx. 1,250kg
