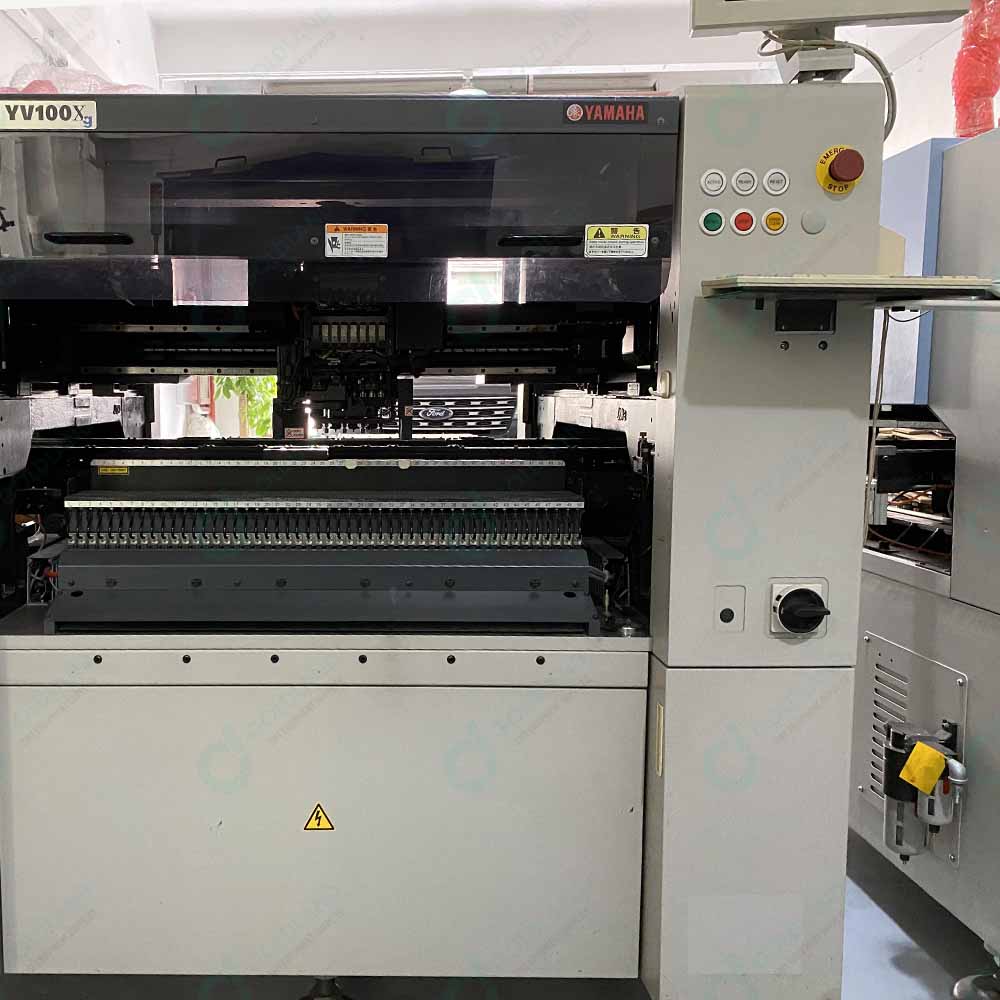

YAMAHA YV100XG SMT Machine - High-Speed Precision PCB Assembly for Electronics Manufacturing

Prices are for show only, please contact us for exact price.

Product Description

The YAMAHA YV100XG SMT Machine is a high-performance solution for precision PCB assembly, designed to meet the demands of modern electronics manufacturing. With its advanced placement technology and high-speed capabilities, the YV100XG ensures accurate and efficient component placement for both high-mix and high-volume production environments. Equipped with state-of-the-art vision systems, this machine handles a wide range of components, from fine-pitch chips to larger devices, delivering consistent quality and reliability. Ideal for industries such as automotive, telecommunications, and consumer electronics, the YV100XG enhances production efficiency with its user-friendly interface and flexible configuration options. Its robust design minimizes downtime and maximizes throughput, making it a cost-effective choice for optimizing your SMT production line. Whether you're assembling complex PCBs or scaling up production, the YAMAHA YV100XG offers the precision, speed, and reliability needed to stay competitive in today's fast-paced manufacturing landscape

Product Specifications

Machine Model	YV100XGP
Vintage

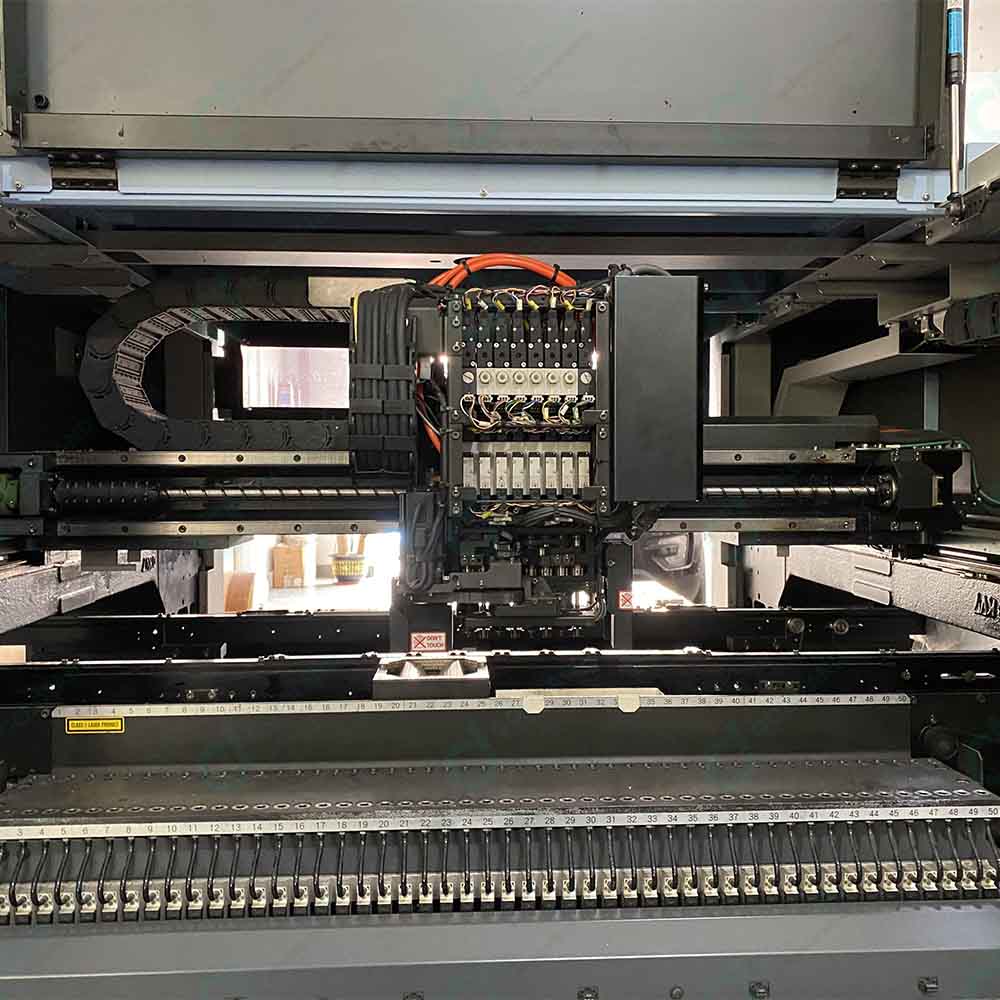

Machinie Head	1 beam x 8 nozzles
Applicable PCB	L460x~W335mm to L50x~W50mm
Through-put (Optimum)	0.18sec/CHIP
Mounting accuracy (Yamaha's standard components)	Absolute accuracy (+3) : +/-0.1mm/CHIP Repeatability(3) : +/-0.04mm/QFP
Applicable components	0603(Metric base) to 32*mm IC, CSPs, BGAs, QFPs
Feeder base	Front feeder base only
Number of component types	90 types(Max, 8mm tape reel conversion)
Power supply	3-Phase AC 380V, 4.0Kw
External dimension*2	L1,650~W1,408~H1,895mm
Weight	Approx. 1,600kg
