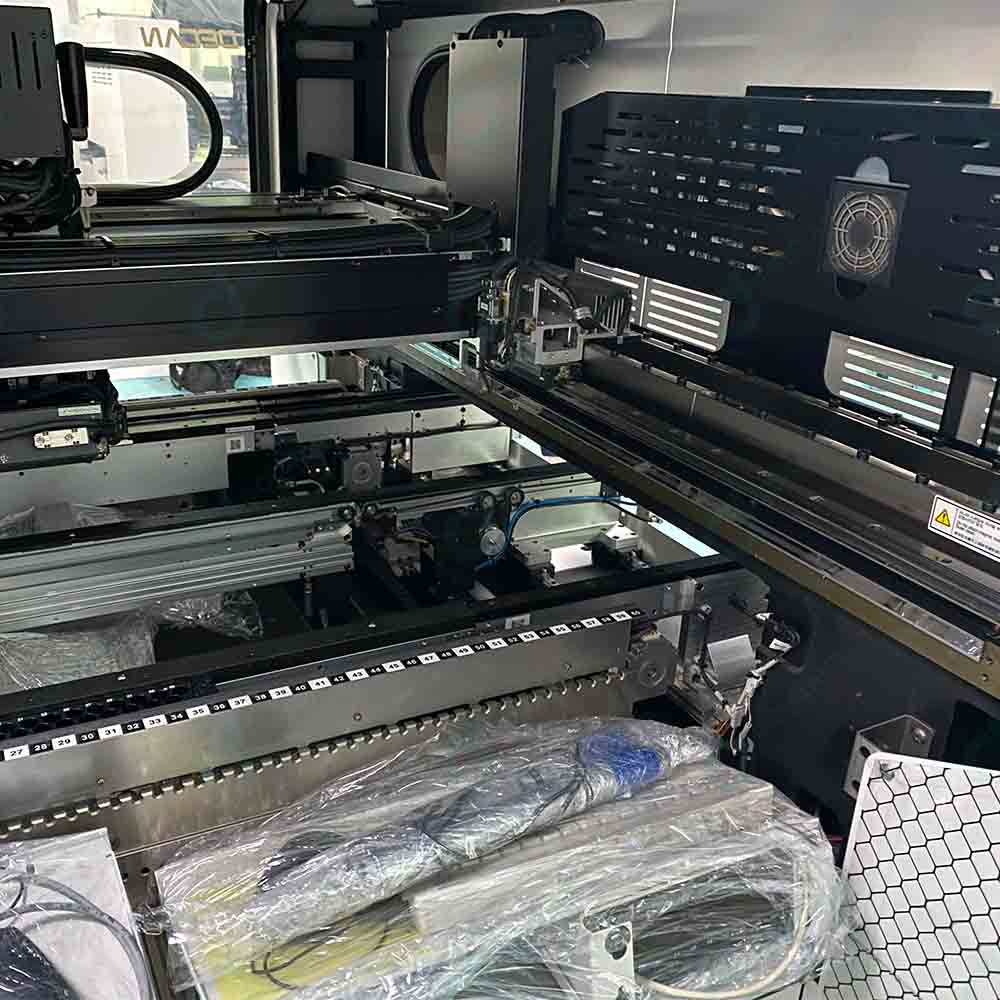

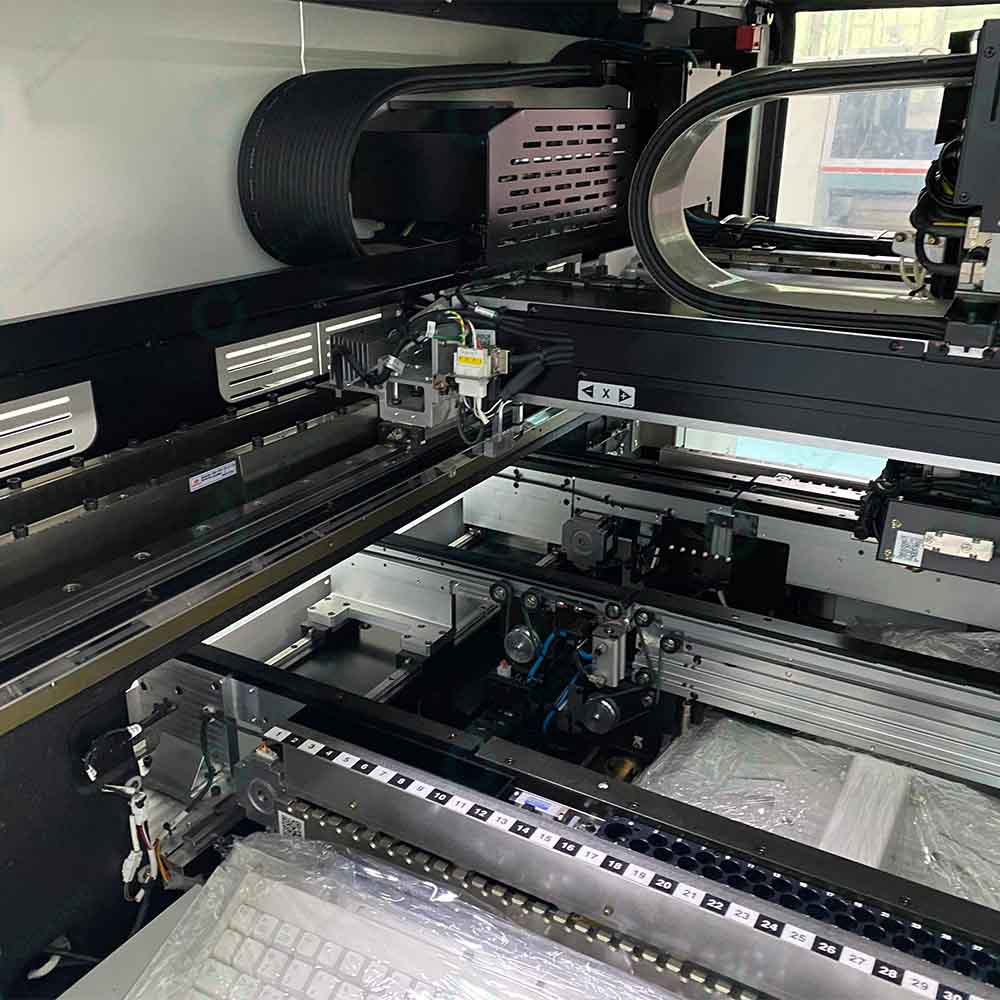

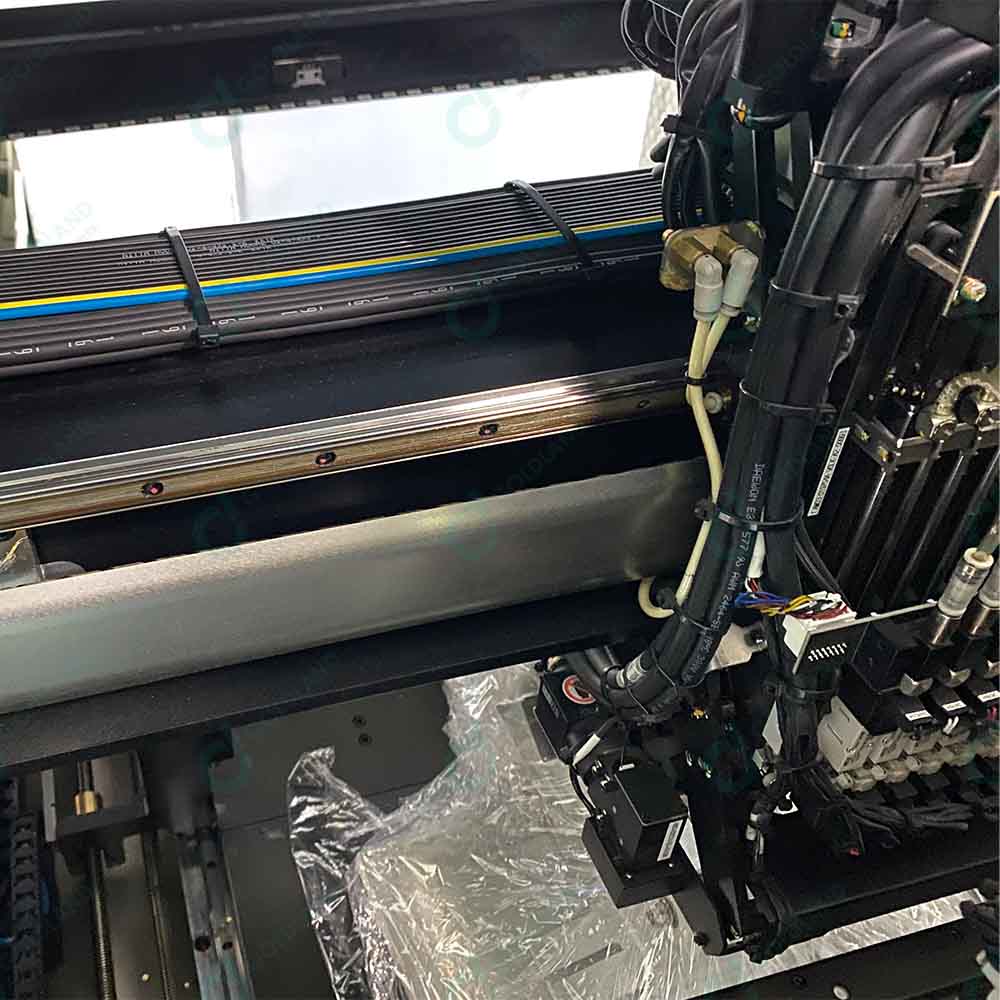

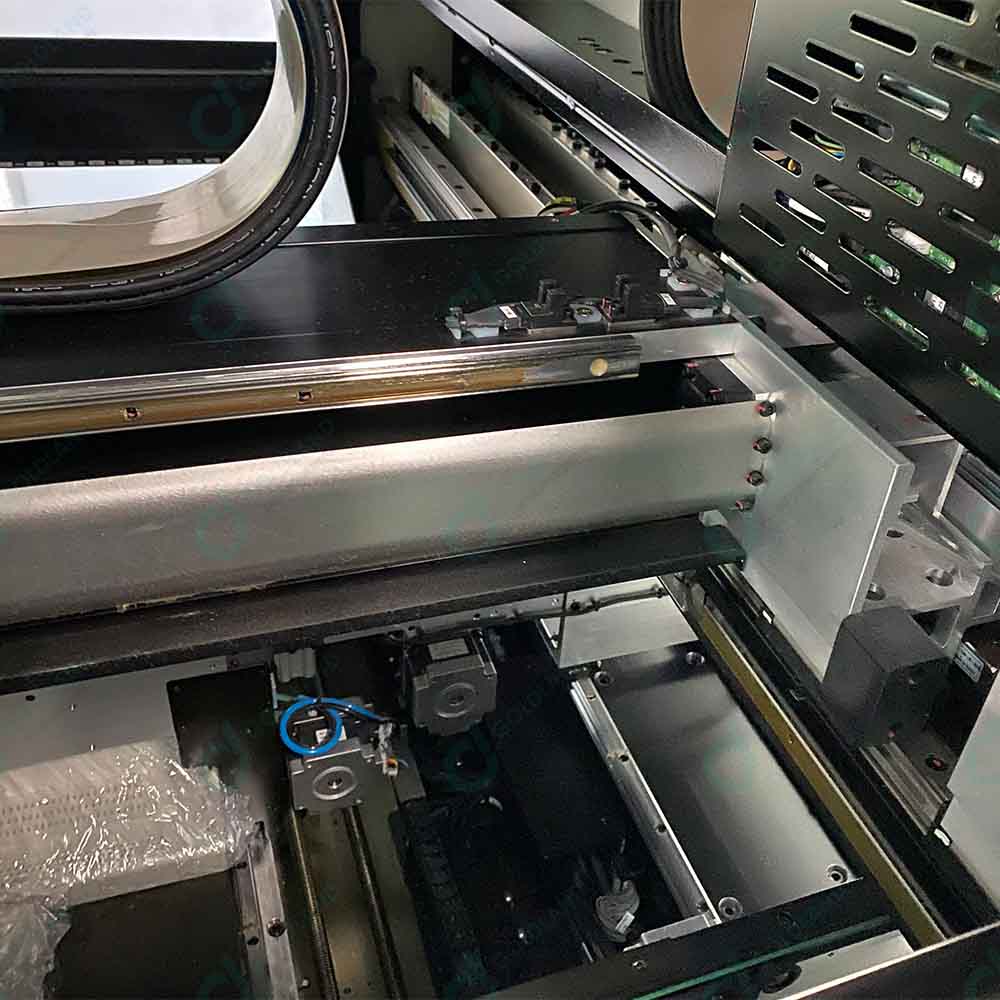

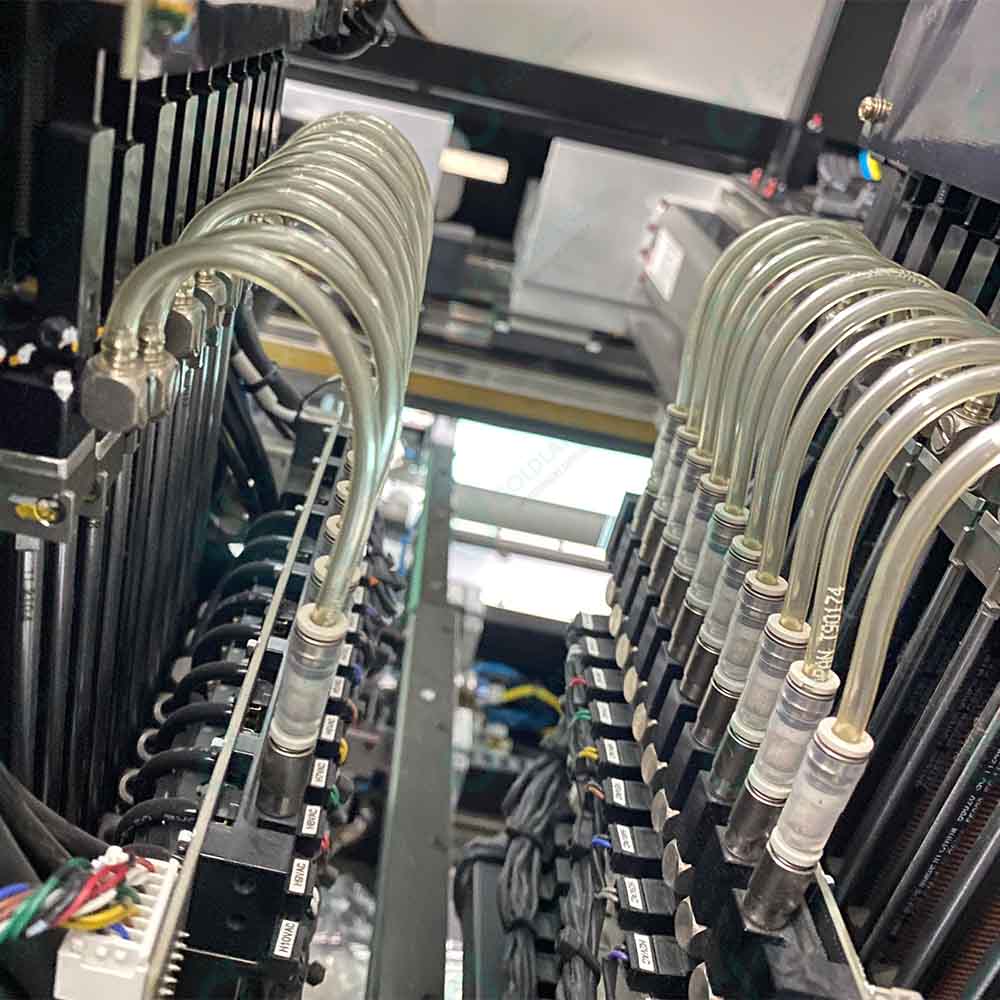

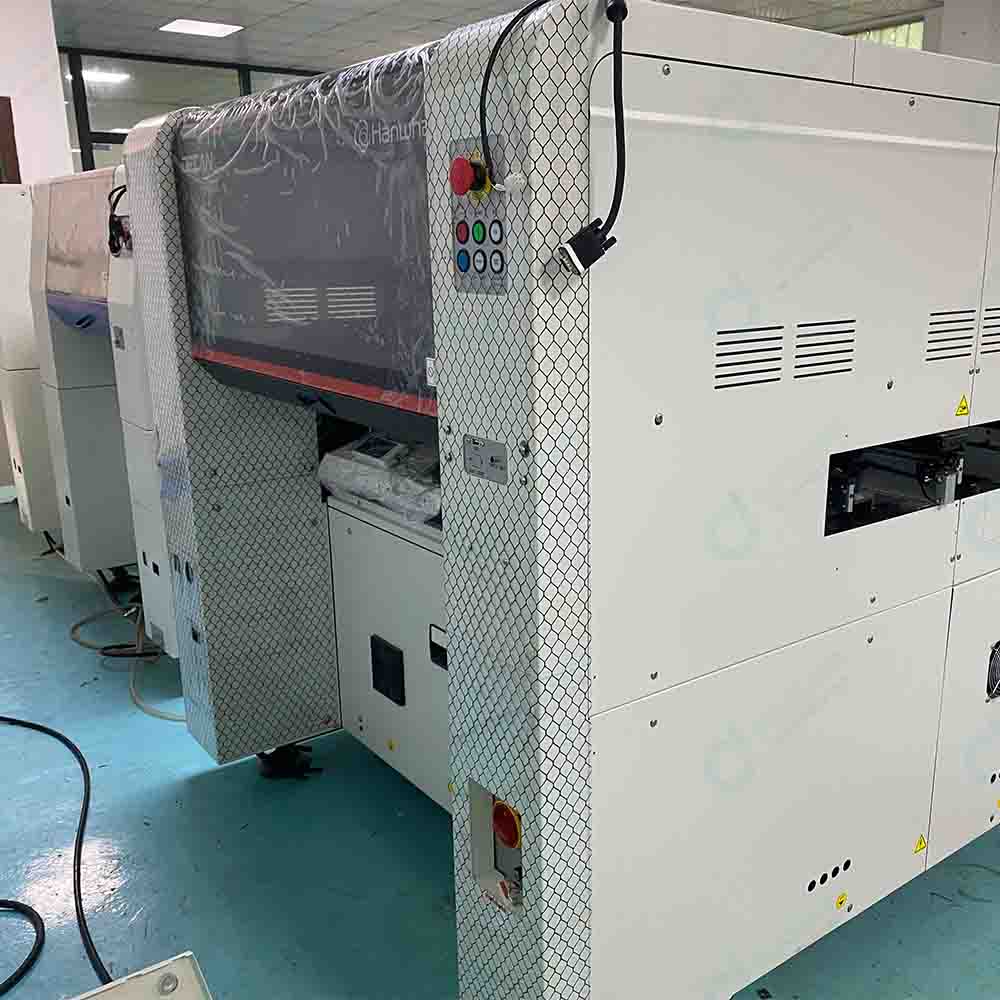

SAMSUNG DECAN S2 SMT Mounter High Speed High Precision Placement for PCB Assembly

The SAMSUNG DECAN S2 is a high-performance SMT mounter designed to deliver fast, precise component placement for PCB assembly. Featuring advanced vision technology and flexible placement capabilities, the DECAN S2 is ideal for both high-mix and high-volume production lines. It excels in handling a wide range of components, including fine-pitch devices and larger components, making it suitable for diverse industries such as electronics, automotive, and telecommunications. With an intuitive user interface, automatic feeder systems, and real-time monitoring, the SAMSUNG DECAN S2 enhances operational efficiency, reduces setup times, and minimizes errors in production. Its robust construction ensures reliable performance even in demanding environments, providing manufacturers with a reliable solution for improving throughput, reducing defects, and maintaining high-quality standards in their SMT assembly processes

Placement speed(Optimum	90.000 CPH
Placement accuracy	28 m(03015 chip) 25 m (IC)
Repeatability	0,01 mm
Minimum PCB size (L x W)	50 x40 mm
Maximum PCB size(LxW)	510 x460 mm(Standard) up to 740 x460 mm (Option)
PCB thickness	From 0,38 mm up to 4,2 mm
8 mm feeder slots	120
Power supply requirements	3 phase,200/208/220/240/380/415 V(50/60 Hz)
Maximum power consumption	5,0 kVA
Air supply requirements	50 Nl/min using vacuum pump
Machine weight	1.800 kg
Machine dimensions (LxWxH)	1.430 x 1.740 x 1.485 mm
