DEK HORIZON 03IX SMT Mounter High Precision HighSpeed Surface Mount Technology Solution

DEK HORIZON 03IX SMT Mounter High Precision HighSpeed Surface Mount Technology Solution Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About DEK HORIZON 03IX SMT Mounter High Precision HighSpeed Surface Mount Technology Solution

Prices are for show only, please contact us for exact price.

Product Description

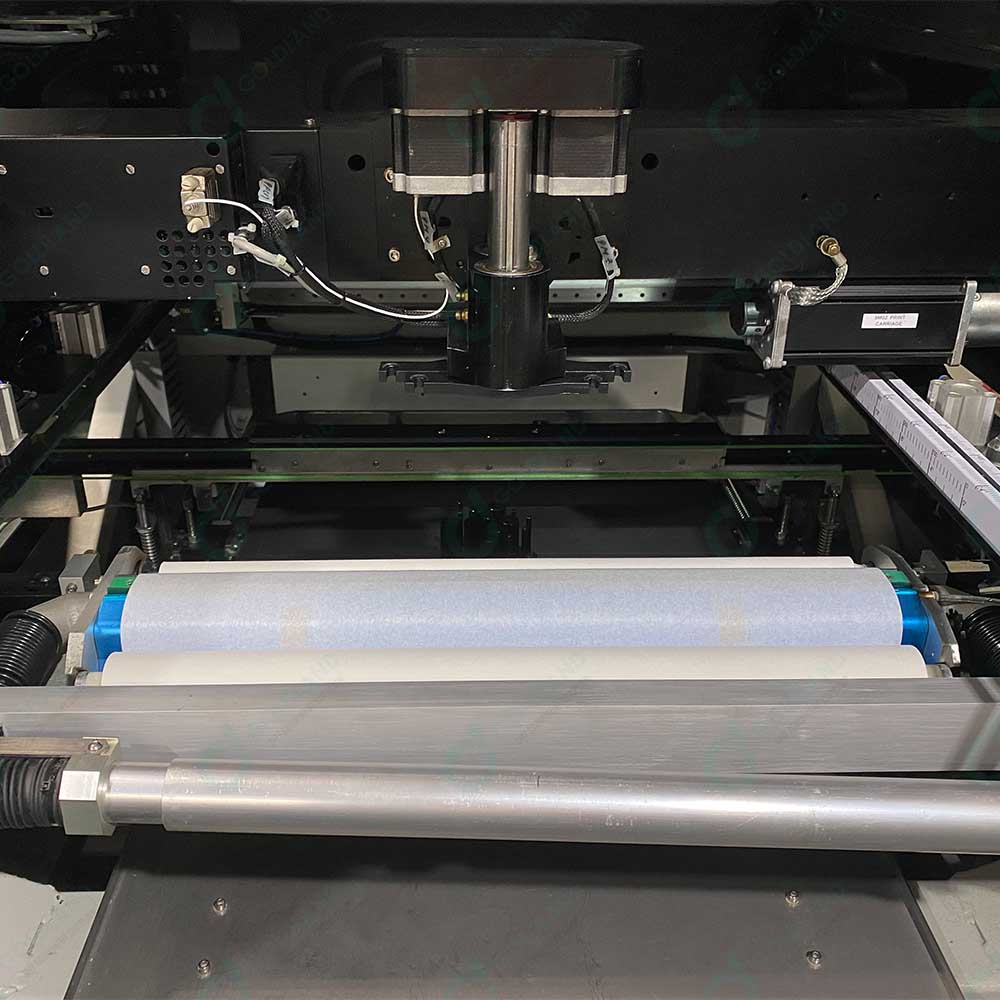

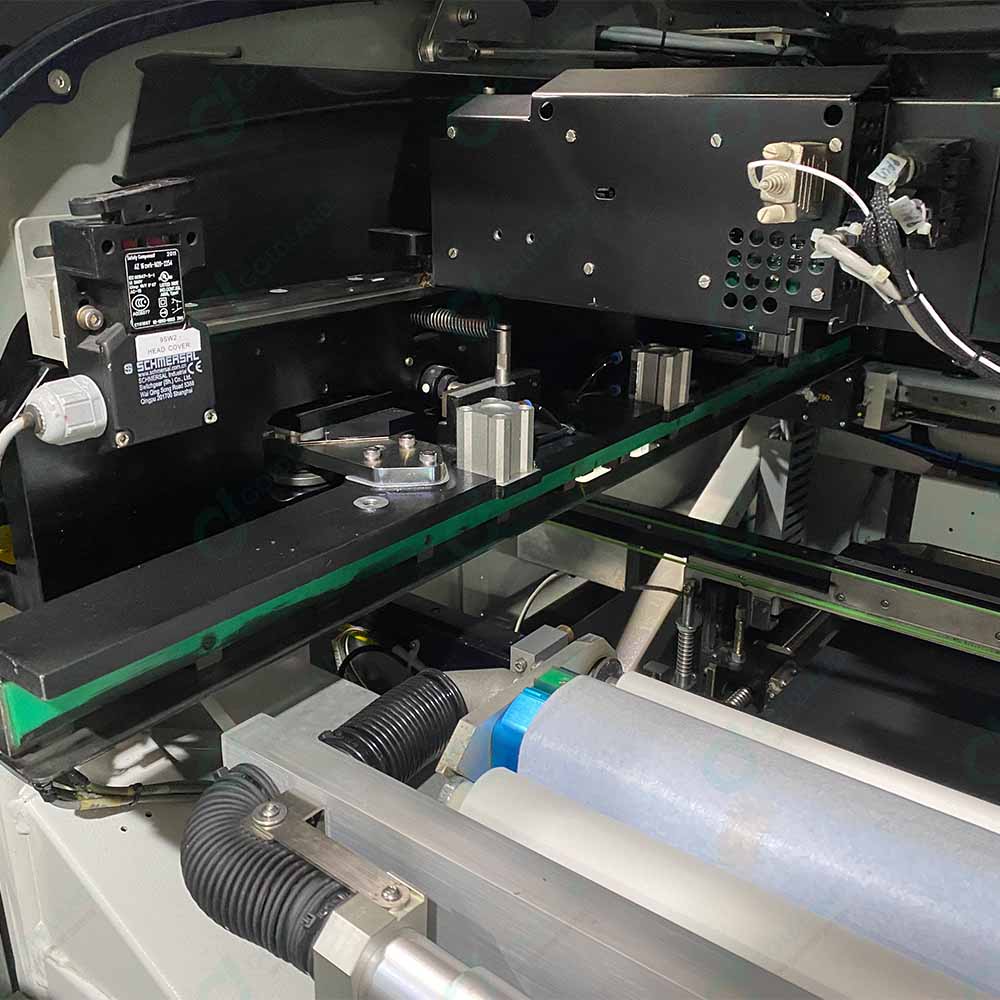

The DEK HORIZON 03IX SMT mounteris designed for high-precision, high-speed surface mount technology (SMT) applications, offering exceptional performance for PCB assembly. With its advanced vision system and flexible configuration, the 03IX ensures accurate component placement, improving assembly quality while reducing cycle times. Ideal for both high-mix and high-volume production lines, the DEK HORIZON 03IXsupports a wide range of components, from small chips to large, complex parts. This mounters innovative software and automated processes provide ease of integration, while its robust build enhances durability and reliability in demanding production environments. Trusted by electronics manufacturers, the 03IX is an essential tool for improving throughput, reducing defects, and increasing operational efficiency.

Product Specifications

Standard Configuration	Specification
Machine Alignment Capability	>2 Cpk @ +/- 12.5m, 6 Sigma #
Process Alignment Capability	>2 Cpk @ +/- 25m, 6 Sigma #
Core Cycle Time	12 secs (11 secs with HTC option)
Maximum Print Area	510mm* (X) x 508.5mm (Y)
Printer Construction	One piece optimised welded frame
ISCANTM Machine Control	Motion control using CAN BUS network
Operating System	Windows XP

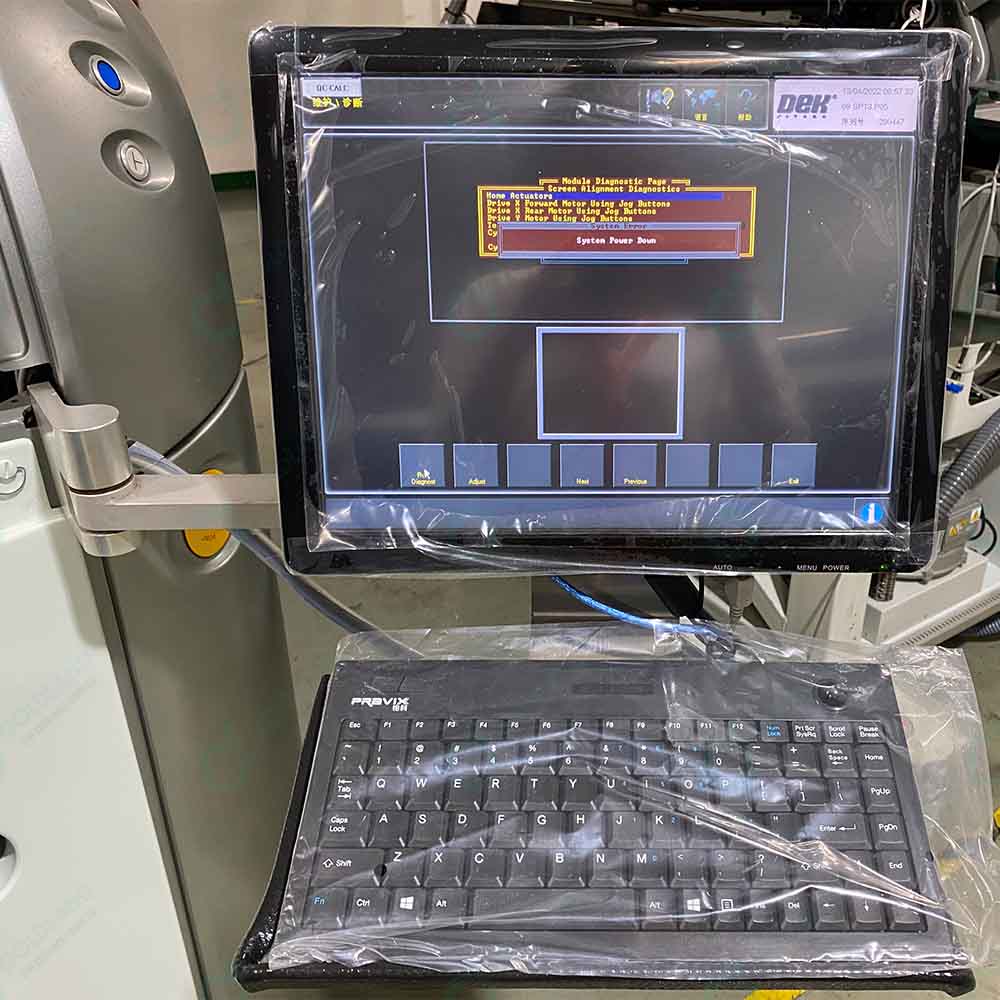

Operator Interface	Colour TFT touch screen display, keyboard and trackall with DEK
Operator Interface	InstinctivTMSoftware.Machine mountable on either left or right hand side.
Camera	HawkEye 750 digital camera, using IEE1394 interface. Multi channel.
Camera	LED lighting. FOV11.3mm x8.7mm. Inspection window 26mm2
Camera Positioning	Rotary motors and encoders with 4 micron resolution
Squeegee Pressure Mechanism	Software controlled, motorised
Stencil Positioning	Manual width screen depth adjuster
Stencil Alignment	Motorised via actuators X, Y, and Theta
Squeegee	Clamped double trailing edge squeegee(1 set included)
Machine Interface	Upline and downline FMI included
Connectivity	RJ-45LAN(networking)and USB2 interface available
Tri colour Beacon	Programmable with audible alarm
Documentation	Hard copy manuals comprising: Operator, Installation,Electrical
	Drawings. On board technical manuals and tutorials supporting operator
	Functions.DVD containing manuals and tutorials.

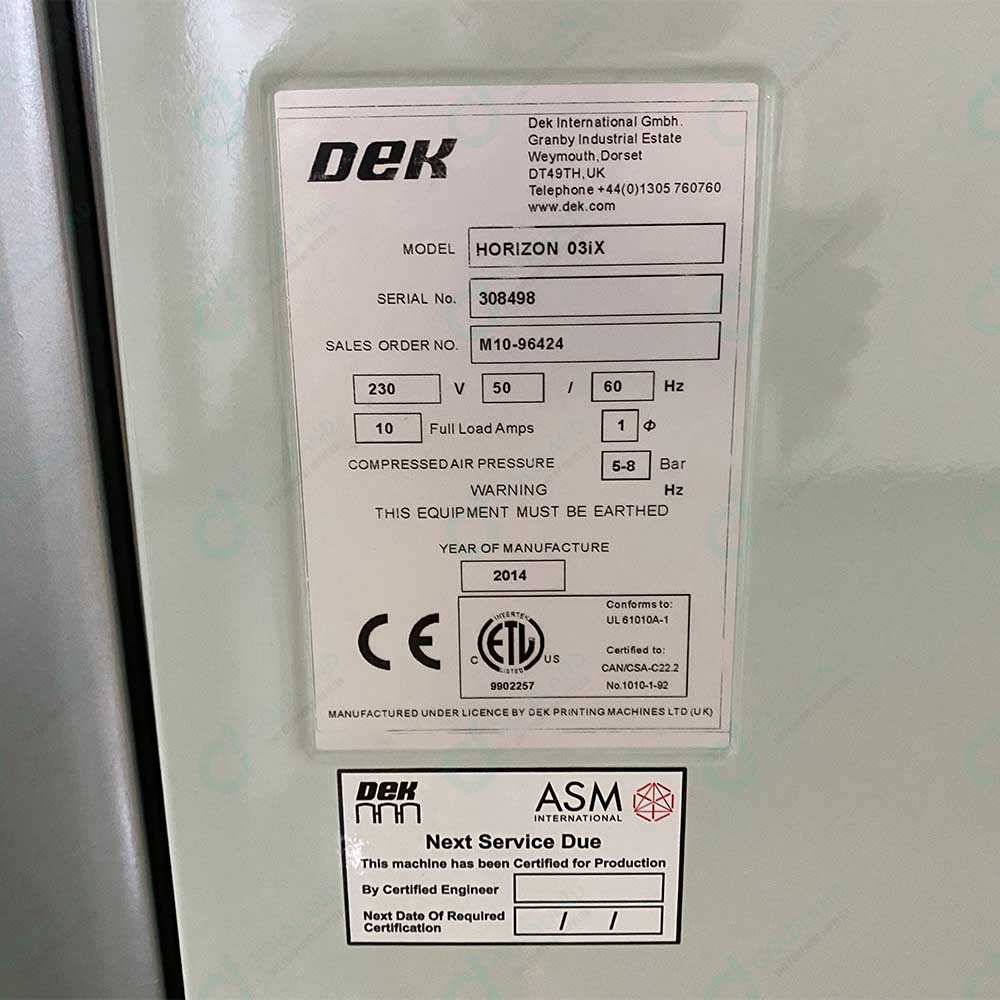

voltage	100 Volts to 240 Volts +/-10%. Single phase 50/60 Hz

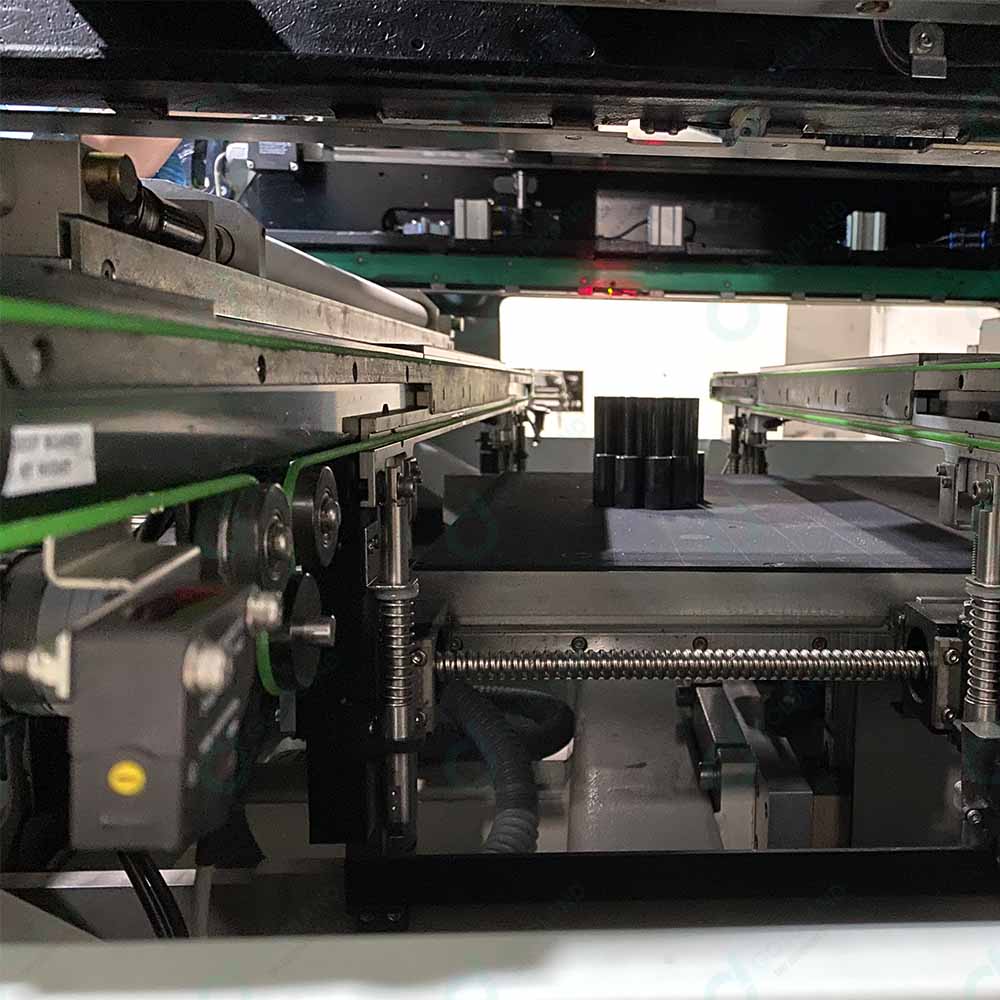

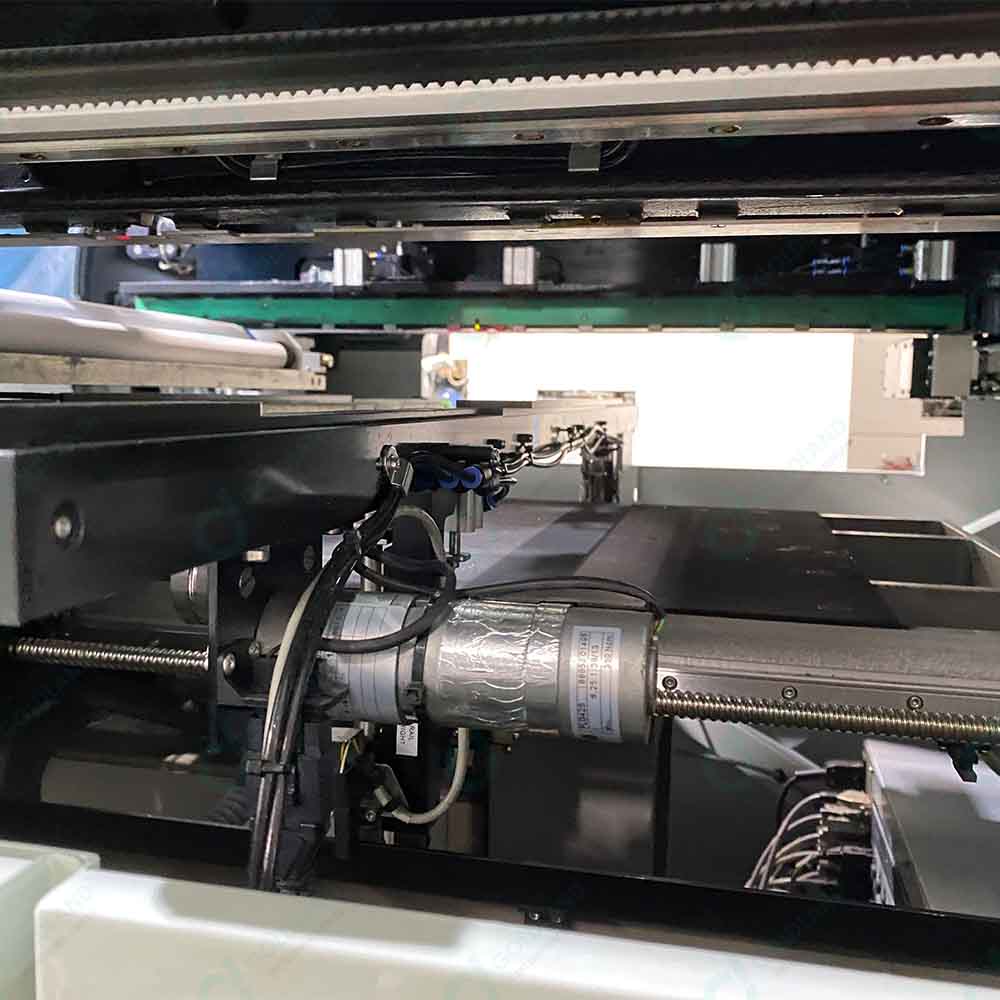

Transport System	Specification
Type	Single piece with 3mm round transport belts, front rail fixed
ESD Compatibility	Black transport belts and guides with surface resistivity of greater than106
ESD Compatibility	Ohms.
Width Adjustment	Programmable motorized rear rail
Transport Direction	Left to right
	Right to left
	Left to left
	Right to right
Substrate Handling size (min)	50mm (X)x40.5mm (Y)
Substrate Handling size (max)	510mm (X) x 508.5mm (Y)
Substrate Thickness	0.2mm to 6mm
Substrate Weight (max)	1kg
Substrate Warpage	Up to 7mm including substrate thickness
Substrate Fixture	Patented over the top clamps
Substrate Handling Features	Soft rail lift/land
Substrate Handling Features	Board clamp regulator
Substrate Underside Clearance	Programmable 3mm to 42mm

Process Parameters	Specification
Print Pressure	0kg to 20kg
Print Speed	2mm/sec to 300mm/sec
Print Gap	0 mm to 6 mm
Substrate Separation	Speed: 0.1mm/sec. to 20mm/sec.
Substrate Separation	Distance: 0mm to 20mm
Print Modes	ProFlow
	Print / Print
	Print / Flood
	Flood / Print
	Adhesive
Paste Knead	Programmable: number; period; on demand

Chase	Specification
Screen Frame Size ( max )	736mm x 736mm (29" x 29")
Screen Frame Thickness	25mm to 38mm ( 1" to 1.5" )
Image Position	Front
	Centre
	Custom
